Sending ZPL and SGD Commands via ZebraNet Print Server

Procedure:


1. From a PC connected to the printer's network, open a browser window.
2. Type the printer's IP Address into the browser's URL Address window.

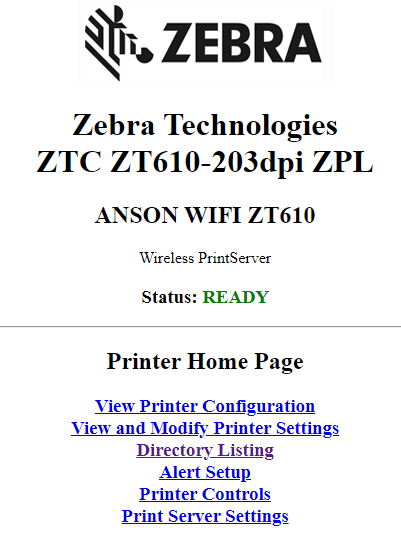

3. The printer's web page will be displayed.

4. Click on Directory Listing.
5. Create New Script.
6. Change Device to E: (Onboard Flash).

7. Click Edit.
8. Paste the Commands and click Print Label.

For example, ZPL commands to change the printer password.


^XA
^KP3214
^JUS
^XZ

The printer has accepted the command and should restart.



NOTE Only configuration commands can be sent via ZebraNet Print Server Web Page.
